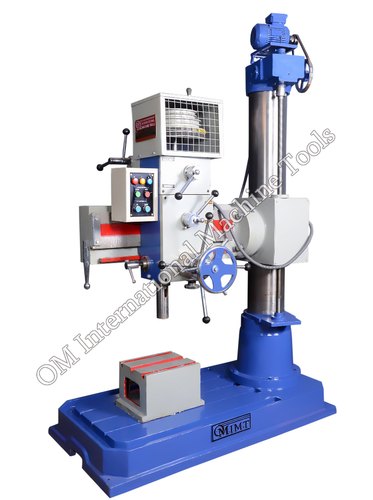

Heavy Duty Radial Drill Machine (Auto Feed & Auto Lift)
Product Details:
| Minimum Order Quantity | 1 Unit |
| Motor Power | 2 H.P. |
| Model Number/Name | ORD-1.5 |
| Brand | OM BRAND |
| Drilling Diameter | 40 mm |
| Warranty | 1 year |
| Automation Grade | Automatic |
| Is It Variable Speed | Variable Speed |
| Lifting Motor | 1 H.P. |
| Hole Diameter | 25-50 mm |
Description
Heavy Duty Radial Drill Machine Manufacturer In India.
We feel proud to introduce ourselves as one of the well-known manufacturers and suppliers of Heavy Duty Radial Drill Machine. The offered radial drilling machine is widely used for performing multiple operations such as drilling, milling, and tapping. Our supplied radial drilling machine is provided with an adequately ribbed base plate, for stopping deflection.
Features:
Swift drilling in metallic pieces
Quick velocity change
Longer service life
Technical Specifications:
Technical SpecificationORD – 1ORD – 1.2ORD – 1.5ORD – 2Drilling Capacity In steel25 mm32 mm40 mm50 mmDrilling Capacity In Casting30 mm35 mm45 mm55 mmTapping capacity in casting20 mm25 mm25 mm30 mmDiameter of column5 mm7 mm9 mm10 mmNo. of speeds8666Travel of Spindle6 mm8 mm9 mm12 mmRange of Spindle Speed80-700 RPM80-700 RPM50-760 RPM40-750 RPM
